NewHydraulic Expansion Chucks
BT40 Hydraulic Expansion Chuck (AD+B) (JD/JF)
K10102642140280
High Clamping ForceRunout ≤ 0.003 mmExcellent Damping
36 article nos.
ISO 9001:2015 Certified · Exporting worldwide
ISO 9001:2015 Certified · Exporting worldwide
A hydraulic expansion face mill holder (HC-FMH-K). The cutter arbor is clamped hydraulically rather than on a screw, so the shell mill runs concentric and the inserts share the load evenly.
Order number
21 articles match
Select the dimensions below to find your order number.
A hydraulic expansion face mill holder (HC-FMH-K). The cutter arbor is clamped hydraulically rather than on a screw, so the shell mill runs concentric and the inserts share the load evenly.
Quality assurance
| Type of Product | Face Mill Holder |
|---|---|
| Interface | BT (MAS 403) |
| Shank & Holder | BT40 |
| Clamping Ø | Ø22, Ø27, Ø32, Ø40, 1", 1-1/4", 1-1/2" |
| Execution | AD+B |
| Standard | DIN ISO 7388-2 / JIS B 6339 |
| Coolant Supply | Central & flange (AD+B) |
| Balancing Grade | G2.5 @ 25,000 rpm |
| Availability | In Stock |

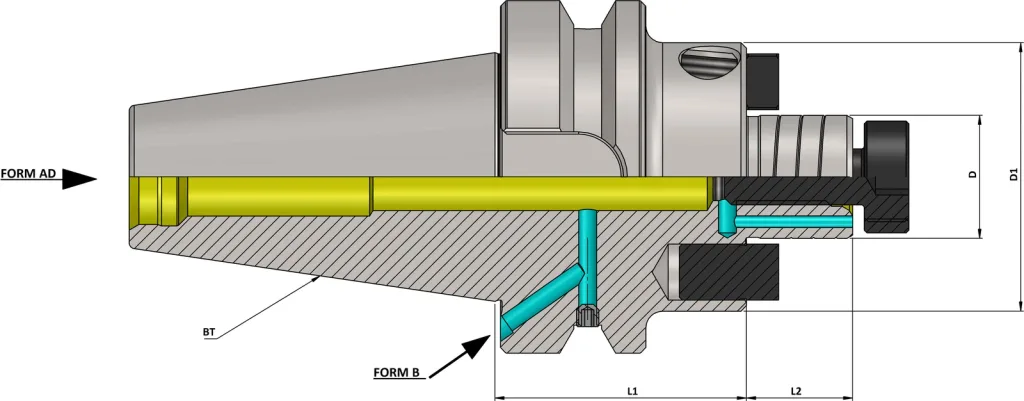

Drawing21 article numbers
NewHydraulic Expansion Chucks
K10102642140280
36 article nos.
NewHydraulic Expansion Chucks
K10102629617282
4 article nos.
DrawingNewFace Mill Holders
K10103934239539
35 article nos.
DrawingNewFace Mill Holders
K10168934239539
35 article nos.
Special gauge lengths, clamping diameters and interfaces — engineered and manufactured in-house at Pune.
