NewHydraulic Expansion Chucks

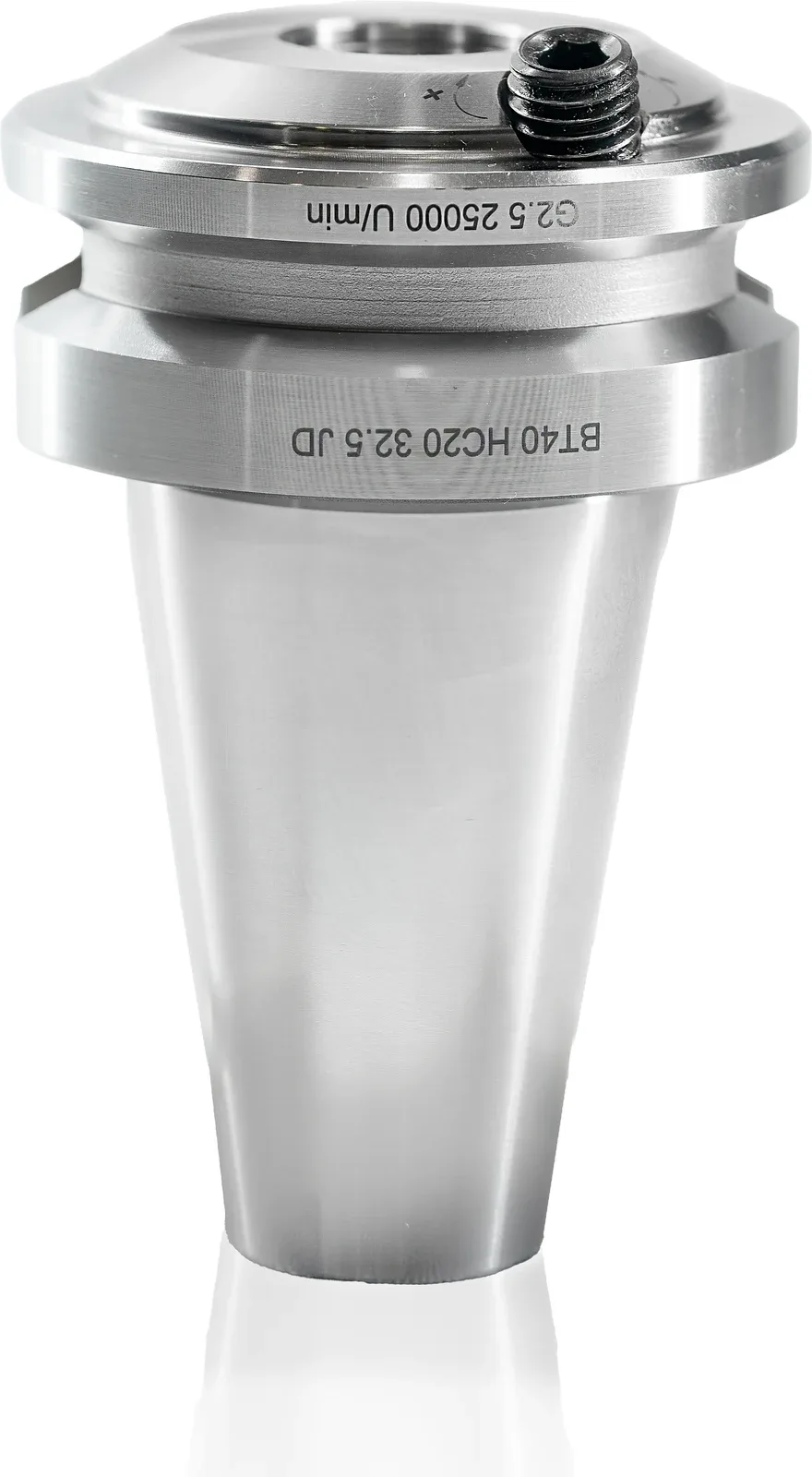

BT40 Hydraulic Expansion Chuck (AD+B) (JD/JF)
K10102642140280
High Clamping ForceRunout ≤ 0.003 mmExcellent Damping
36 article nos.
ISO 9001:2015 Certified · Exporting worldwide
ISO 9001:2015 Certified · Exporting worldwide
A short gauge-length hydraulic expansion chuck. Pulling the cutter as close to the spindle nose as the fixture allows is the cheapest rigidity you can buy, and it shows in the depth of cut you can take.
Order number
2 articles match
Select the dimensions below to find your order number.
A short gauge-length hydraulic expansion chuck. Pulling the cutter as close to the spindle nose as the fixture allows is the cheapest rigidity you can buy, and it shows in the depth of cut you can take.
Quality assurance
| Type of Product | Short GP Chuck |
|---|---|
| Interface | BT (MAS 403) |
| Shank & Holder | BT40 |
| Clamping Ø | Ø20, 3/4" |
| Execution | AD |
| Standard | DIN ISO 7388-2 / JIS B 6339 |
| Coolant Supply | Central (AD) |
| Balancing Grade | G2.5 @ 25,000 rpm |
| Availability | Made to Order |

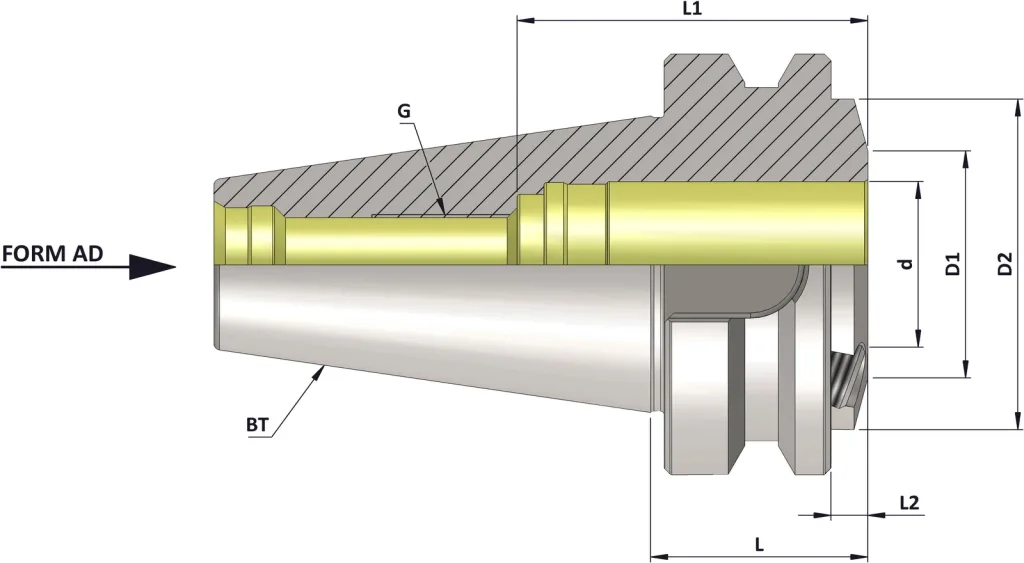

Drawing2 article numbers
