NewHydraulic Expansion Chucks
BT40 Hydraulic Expansion Chuck (AD+B) (JD/JF)
K10102642140280
High Clamping ForceRunout ≤ 0.003 mmExcellent Damping
36 article nos.
ISO 9001:2015 Certified · Exporting worldwide
ISO 9001:2015 Certified · Exporting worldwide
A hydraulic expansion chuck with run-out adjustment screws. Concentricity is dialled in on the machine with the tool fitted, which matters for reaming, fine boring and any single-flute operation.
Order number
22 articles match
Select the dimensions below to find your order number.
A hydraulic expansion chuck with run-out adjustment screws. Concentricity is dialled in on the machine with the tool fitted, which matters for reaming, fine boring and any single-flute operation.
Quality assurance
| Type of Product | Run-Out Adjustment Chuck |
|---|---|
| Interface | BT (MAS 403) |
| Shank & Holder | BT40 |
| Clamping Ø | Ø20, Ø25, Ø32, 3/4", 1", 1-1/4" |
| Execution | AD+B, JD, JF, AD/AV, Run-out adjustable |
| Standard | DIN ISO 7388-2 / JIS B 6339 |
| Coolant Supply | Central & flange (AD+B) |
| Balancing Grade | G2.5 @ 25,000 rpm |
| Availability | In Stock |

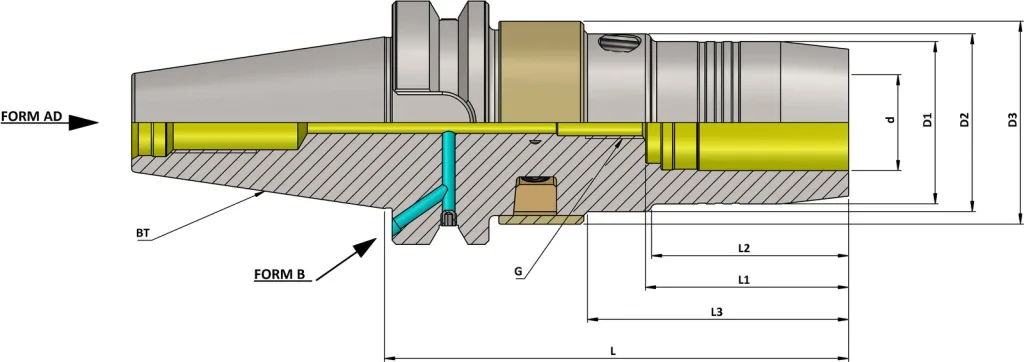

Drawing22 article numbers
