NewHydraulic Expansion Chucks
BT30 Hydraulic Expansion Chuck (AD) (JD)
K10101629616282
High Clamping ForceRunout ≤ 0.003 mmExcellent Damping
18 article nos.
ISO 9001:2015 Certified · Exporting worldwide
ISO 9001:2015 Certified · Exporting worldwide
A slim-nose hydraulic chuck for five-axis and die-mould work, where the body has to reach into a cavity without fouling the part or the fixture.
Order number
55 articles match
Select the dimensions below to find your order number.
A slim-nose hydraulic chuck for five-axis and die-mould work, where the body has to reach into a cavity without fouling the part or the fixture.
Quality assurance
| Type of Product | Slim 3° Chuck |
|---|---|
| Interface | BT (MAS 403) |
| Shank & Holder | BT30 |
| Clamping Ø | Ø3, Ø4, Ø5, Ø6, Ø8, Ø10, Ø12, 1/8", 3/16", 1/4", 5/16", 3/8", 1/2" |
| Execution | AD, JD |
| Standard | DIN ISO 7388-2 / JIS B 6339 |
| Coolant Supply | Central (AD) |
| Balancing Grade | G2.5 @ 25,000 rpm |
| Availability | In Stock |

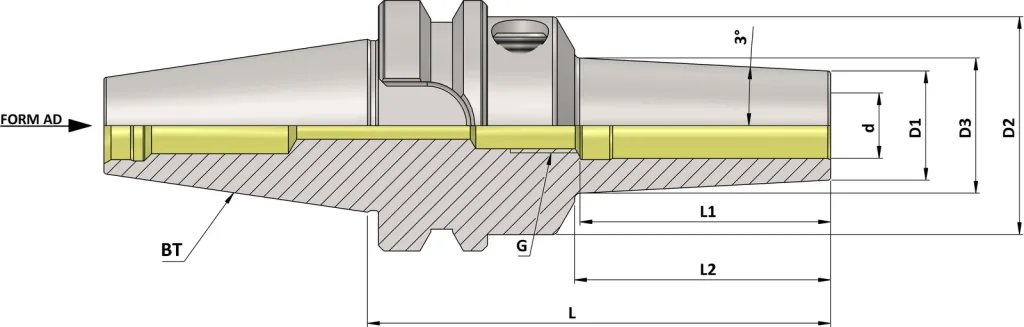

Drawing55 article numbers
NewHydraulic Expansion Chucks
K10101629616282
18 article nos.
NewHydraulic Expansion Chucks
K10101629135227
4 article nos.
DrawingNewSlim 3° Chucks
K10102707127259
79 article nos.
DrawingNewSlim 3° Chucks
K10316707131258
79 article nos.
Special gauge lengths, clamping diameters and interfaces — engineered and manufactured in-house at Pune.
